SAJ H2 10–30kW Three Phase Hybrid Inverter

H2-10k-30k-hybrid-inverter-product-overview-front

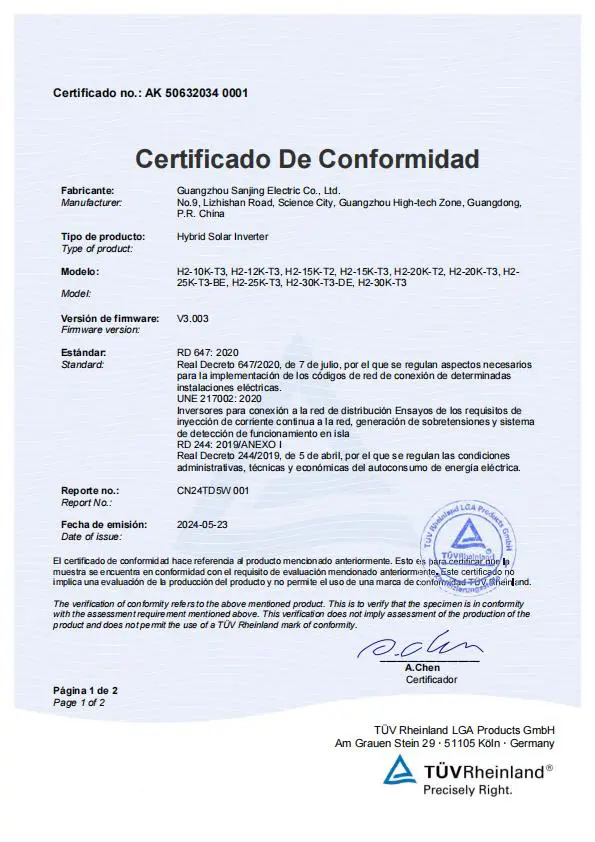

H2-(10-30K)-T2,T3 Series Three-phase RD647 and UNE 217002 Certificate-ES_02

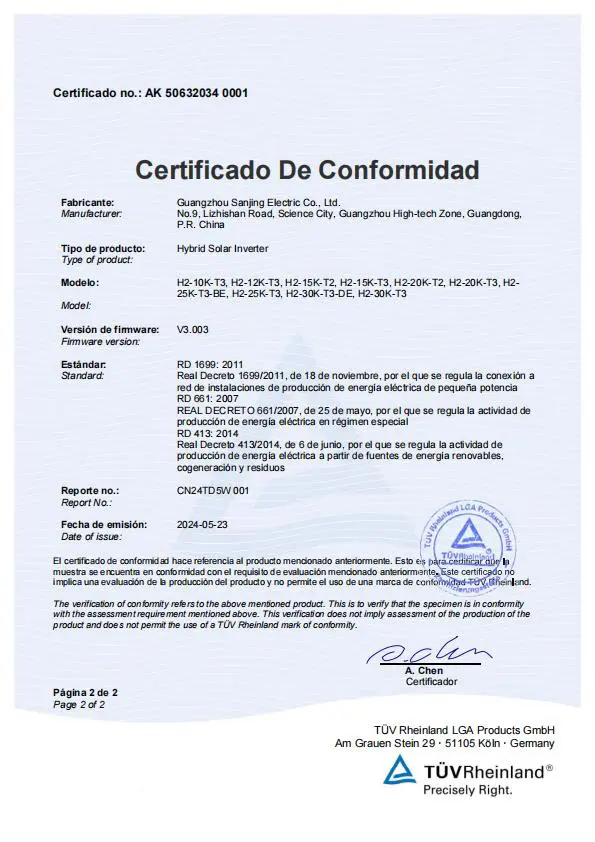

H2-(10-30K)-T2,T3 Series Three-phase RD647 and UNE 217002 Certificate-ES_03

홈 » 제품 » H2-10k~30k 3상 하이브리드 인버터

기술 사양

교류 전원	10kW - 30kW
인버터 유형	하이브리드 인버터
MPP 전압 범위	180 – 900 볼트
MPP 추적기	2 – 3 (model-dependent)
단계	3
의사소통	CAN, RS485, RS232, Wi-Fi, Ethernet, 4G, DRM
1팩당 개수	1 per carton, 4 per pallet
보증	5 years (extendable up to 15 years)

이 제품에 대해 문의하기 모든 제품 보기

제품 설명

SAJ H2 10 – 30 kW Three-Phase Hybrid Inverter (T2 / T3)

Heavy-duty hybrid inverter for commercial villas and light-industrial roofs.
98 % peak efficiency, 3 × MPPT up to 20 A per string and dual 50 A battery ports deliver rock-solid performance, while 150 % DC oversizing, 110 % AC overloading and < 20 ms UPS switchover maximise uptime and yield.

디자인

크기	576 × 659 × 242 mm
무게	50 kg
냉각	Intelligent fan < 50 dB
첨부 파일	IP 65 aluminium, C5 anti-corrosion

PV 및 AC 사양

정격 교류 전력	10 / 12 / 15 / 20 / 25 / 30 kW
최대 PV 출력	20 – 45 kW DC (150 %)
MPPT / 스트링	2 × 2 (T2) or 3 × 2 (T3)
MPPT 범위	180 – 900 V DC
Max String Current	20 A (40 A per MPPT)
그리드 출력	3L+N+PE 220/380 – 240/415 V
AC 과부하	110 % for 60 s
UPS 백업	10 – 30 kVA, < 20 ms transfer
최대 효율	98 %

배터리 사양

화학	LiFePO₄ (HV 180 – 800 V)
Ports	2 × 50 A (1C charge / discharge)
왕복 η	97.6 %
Compatible stacks	Up to two battery banks (CAN)

스마트 기능

Self-Use, Time-of-Use, Backup & Peak-shaving modes
Zero-export & dynamic limit via SAJ smart meter
100 % three-phase imbalance support
선택 사항 AFCI 20 A for arc-fault shutdown
Bluetooth LCD + Elekeeper app; Wi-Fi / Ethernet / 4G cloud & OTA updates

안전 및 규정 준수

Type II AC & DC SPDs, DC switch, RCMU, GFCI, DCI & insulation monitoring
Active anti-islanding (AFD), AC short-circuit & overload protection
Meets EN 50549, CEI 0-21/0-16, AS 4777.2, VDE-AR-N 4105, G98/G99 …

설치 및 서비스

Wall-mount bracket, MC4 PV inputs, quick-fit AC & battery plugs
Smart meter, CT set & AIO3 communication module included
Commission in minutes via Elekeeper app
Global SAJ support network

보증

표준 커버	5년
확장 옵션	10 / 15 years

제품 관련 자료

최신 사용자 설명서 및 데이터시트를 다운로드하세요:

H2 Series H2 10-30k Three Phase Inverter Datasheet (5744 downloads ) H2 Series H2-10-30K Inverter Quick Installation Guide (5392 downloads ) H2 Series H2-10-30K Three Phase Inverter User Manual (5223 downloads )

제품 영상 갤러리

당사의 제품 시연 및 튜토리얼을 시청해 보세요

SAJ's beautiful and stunning case reference in Sweden - 2023 - EN

SAJ Installation Guidance & Addressing Common Installation Issues and Solutions

SAJ H2&B2 Installation tutorials

SAJ at ☀SNEC ES+ 2023 Shanghai: Revolutionize Energy Storage Solutions - 2023 - EN

SAJ H2 및 B2 고전압 에너지 저장 솔루션

Smarter and More Profitable - SAJ at Intersolar Europe 2023

적용 시나리오

이 제품이 다양한 실제 상황에서 어떻게 활용될 수 있는지 알아보세요

C&I Rooftop (10–30 kW): Office / Clinic / Supermarket

대상: Small-to-mid commercial buildings that need three-phase supply, seamless backup for IT/POS, and TOU bill savings.

구성 요소	Recommended	Why
PV array	12–30 kW on 2–3 MPPTs (2 strings/MPPT)	Covers daytime base load; handles mixed roof aspects
HV battery	15–30 kWh (dual HV ports supported)	Shaves evening peaks; rides through short outages
Backup bus	POS, lighting, networking, cashier PCs	Keeps operations online (UPS ≤20 ms)

결과: Sales & IT stay online during brownouts; TOU scheduling moves energy from off-peak to peak; zero-export available if the DSO requires.

Three-phase balance checklist:

Distribute single-phase sub-circuits across L1/L2/L3
Keep high-inrush motors (compressors) on non-backup side
Verify export limit readings before handover (screenshot)

“Two grid dips this week—checkout systems never rebooted.” — Facility Manager

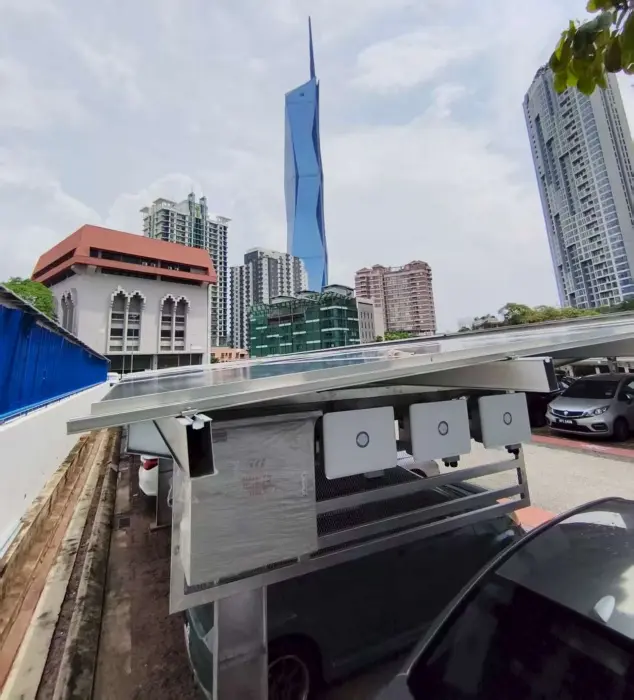

H2-10k-30k-hybrid-inverter-application-C&I Rooftop

EV-Ready Villa / Boutique Hotel: HVAC + Night Peak Shaving

대상: Villas or small hotels with three-phase HVAC/heat pump and EV charging, aiming for comfort + lower bills.

Why it fits: Three-phase hybrid output + high-voltage battery handles evening peaks; UPS transfer ≤20 ms protects lighting/IT from flicker.

Suggested setup:

PV 15–25 kW across 2–3 MPPTs (split S/E/W)
Battery 20–30 kWh; reserve SOC 25–30% for outages
EV charger and HVAC placed on non-backup branch

Simple TOU plan (code style):

Charge (off-peak):   00:00–05:00
Discharge (peak):    18:00–22:00
Reserve SOC:         25%
Export Limit:        0 W (if required)

Installer notes:

Balance single-phase sub-loads across L1/L2/L3
Leave backup bus for lights, IT, security, elevators (if small)
Save screenshots of grid profile and export-limit for records

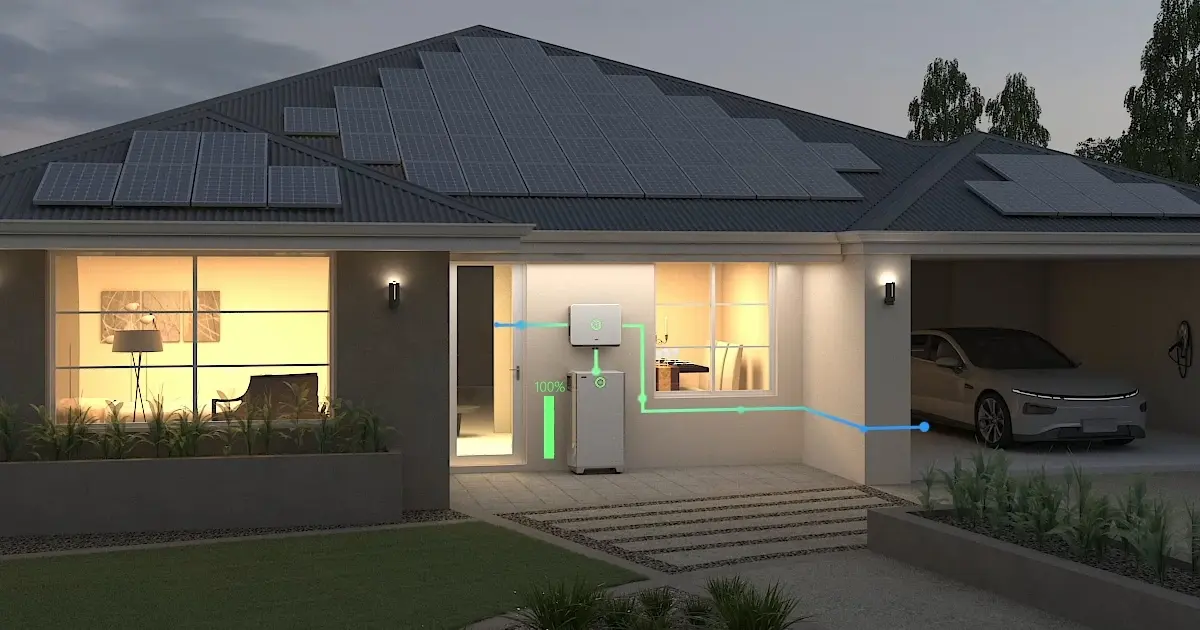

H2-10k-30k-hybrid-inverter-application-EV-Ready Villa

Apartment Building Common Areas: Night Security & Cost Control

대상: Multi-unit residential buildings needing quiet, seamless backup for corridors, lobby IT, and security—plus lower common-area bills.

Why H2-10k~30k fits: Three-phase hybrid output matches building services; dual HV battery ports scale from ~20–40 kWh; transfer ≤20 ms keeps lights/CCTV steady; noise <50 dBA suits indoor electrical rooms.

Subsystem	일반적인 전력	백업?	참고 사항
Corridor & stairwell LEDs	300–800 W	네	No flicker during dips (UPS ≤20 ms)
CCTV + access control	50–120 W	네	24/7 continuity for security
Lobby/concierge IT	150–300 W	네	Routers, PCs, intercoms stay online
Water booster / elevator	kW급	아니요	Leave on non-backup (high inrush)

Energy plan (simple):

PV daytime:      PV → Corridors/Lobby IT; surplus → Battery
Evening peak:    Battery → Corridors/CCTV (18:00–23:00)
Night buffer:    Reserve SOC 25–30% for late-night security
Maintenance:     Download monthly report; review alarms

Commissioning essentials:

Balance single-phase branches across L1/L2/L3 to reduce neutral loading.
Move essential circuits (LEDs/CCTV/IT) to the backup panel; label clearly.
Run a 2-minute outage test; confirm transfer time and load priority.

Recommended PV: 12–24 kW on 2–3 MPPTs; Battery: 20–40 kWh (dual HV ports).
Keep motors (pumps/elevators) on non-backup; schedule starts outside evening peaks.
Save screenshots of final parameters and monthly kWh report for board records.

“Two outages this month—corridors stayed lit and cameras never dropped.” — Building Manager

H2-10k-30k-hybrid-inverter-application-Apartment Building

고객님과의 협력 방식

첫 전화부터 최종 배송에 이르기까지, 모든 과정을 간편하고 명확하게 진행해 드립니다.

이야기 나누기 & 계획 세우기

저희는 고객님의 요구 사항을 경청하고, 고객님께 가장 적합한 계획을 수립해 드립니다. 저희 팀이 고객님께서 모든 선택지를 충분히 이해하실 수 있도록 도와드리겠습니다.

인용 및 동의

숨겨진 비용 없이 명확한 가격을 알려드립니다. 모든 사항에 만족하시면 계약을 체결하고 작업을 시작합니다.

만들기 & 확인하기

저희는 고객님의 주문을 정성껏 처리하며, 모든 사항이 저희의 엄격한 기준을 충족하는지 꼼꼼히 확인합니다. 진행 상황을 정확히 파악하실 수 있습니다.

배송 및 지원

주문하신 상품은 정시에 안전하게 배송됩니다. 배송 후 도움이 필요하시면 언제든지 문의해 주세요.

프로젝트를 시작할 준비가 되셨나요?

지금 바로 24시간 FOB 견적을 받아보세요

자주 묻는 질문

당사의 제품 및 서비스에 관한 자주 묻는 질문에 대한 답변을 확인해 보세요

How do I choose the right inverter size (10k / 12k / 15k / 20k / 25k / 30k)?

Quick rule: Size the inverter by your peak daytime load 그리고 roof PV potential, not just the meter rating.

Site type	Typical peak load	Suggested inverter	PV array	Battery (evening 2–4h)
Small clinic / store	6–9 kW	10–12 kW	8–12 kW	10–15 kWh
Villa w/ heat pump	10–14 kW	15–20 kW	12–18 kW	15–20 kWh
Workshop / small factory	15–24 kW	20–25 kW	18–30 kW	20–30 kWh
Large retail / EV-ready	22–30 kW	25–30 kW	24–36 kW	25–40 kWh

Rules of thumb:

PV size ≈ 1.2–1.5 × average daytime load (roof & policy permitting).
Battery kWh ≈ evening peak kW × hours + 15–25% reserve.
Put EV charger / heavy motors on the non-backup side.

Checklist before you lock the size:

List top 5 loads you must keep during outages (backup bus).
Confirm roof orientations for 2–3 MPPT distribution.
Check local limits (export cap / phase balance / DNSP rules).

How does backup work and what wiring rules matter most?

Transfer time: ≤20 ms (datasheet also describes UPS 10 ms capability). Use backup for essential loads that must not reboot.

Model class	Recommended AC breaker
10–20 kW	50 A
25–30 kW	63 A

Grid/backup neutrals: In AU/NZ system diagrams, grid-side N and backup-side N are common; PE at the BACK-UP port is not connected. Follow local codes.

Balance single-phase loads across L1/L2/L3; keep high-inrush devices off backup.
Use 10–16 mm² AC cable (16 mm² recommended) and 8 mm² additional ground as guided.
Confirm LED/app status after a simulated grid-off test.

What can I actually do in the app day-to-day (without touching wiring)?

한눈에 보기: See live PV, battery SOC, export power, and each phase’s load. Get alerts if something trips or a setting changes.

Everyday tasks you’ll use most:

Switch working modes: Self-Use / Backup / Time-of-Use.
Set a Reserve SOC (e.g., 25–30%) for evening outages.
Turn Zero-Export on/off if your utility requires it.
Check yesterday’s energy report and monthly trend.
Run a firmware update when prompted (one tap, no site visit).

Simple TOU schedule (example):

Charge (off-peak):   00:00–05:00
Discharge (peak):    18:00–22:00
Reserve SOC:         25%
Export Limit:        0 W (if policy needs it)

Pro tip: Share a “viewer” role with your client or manager so they can see the dashboard and bills-savings graph without changing settings.

How should I size PV strings and the HV battery for H2-10k~30k?

PV side: Max 1000 Vdc; MPPT 180–900 V; up to 3 MPPTs with 2 strings/MPPT. DC input currents 40/40/40 A allow modern high-current strings.

일반적인 경험칙: Aim for mid-window MPPT voltage (~500–750 V) for winter mornings; ensure string Voc(@ Tmin) stays <= 1000 V.

Example:
Panel Voc(stc)=49 V; TempCoeffVoc=-0.28%/°C; Tmin=-10°C
Voc(@-10°C)=49×[1+0.0028×(25-(-10))]≈53.8 V
Max series ≈ floor(1000/53.8)=18 modules/string

Battery side: LiFePO₄ 180–800 V; dual ports; max charge/discharge 2×50 A. Use CAN/RS485 BMS mapping for accurate SOC and safe curves.

Supports ~150% DC oversizing to boost yield in low-irradiance hours.
Supports three-phase voltage imbalance and fast battery charge/discharge.

How do I commission and monitor (app, grid profile, Volt-Var/Volt-Watt)?

Install the Elekeeper app (formerly eSAJ Home); choose Overseas Node; bind device by SN via Bluetooth.
Select country/grid profile (e.g., AS4777_A/B/C for AU) and save protection parameters.
Connect Wi-Fi/Ethernet/4G module for cloud; monitor via app or eSolar web.

Working modes: Self-consumption, Backup (with reserve SOC), Time-of-Use scheduling.

Power quality: Fixed PF/Var, Volt-Watt 그리고 Volt-Var per AS/NZS 4777.2 / DNSP presets. Review after firmware updates.

Simple TOU example:
Charge (off-peak): 00:00–05:00
Discharge (peak): 18:00–22:00
Reserve SOC: 25%
Export Limit: 0 W if required by utility

What ships with the inverter and how does Sunriver help you deploy faster?

In the box (typical AU set):

Item	Use
Hybrid inverter unit	PV + Battery control (on/off-grid)
Mounting bracket & hardware	Wall install
PV/battery connectors, AC terminals	Clean terminations
Smart meter (DTSU666) + 3 CTs + 10 m RS485	Export limit & energy data
Waterproof covers (AC/Comm/DC)	IP65 integrity
Quick Guide + User Manual	Wiring & commissioning

What we prepare for you:

FOB pricing and model matching for 10–30 kW sites
Digital manuals, quick guides, and compliance certificates on request
Meter/CT wiring notes and Export-Limit setup checklist

Pre-install checks: confirm breaker size (50 A or 63 A), CT orientation (→ grid), RS485 A/B polarity, and grid profile selection in the app.
