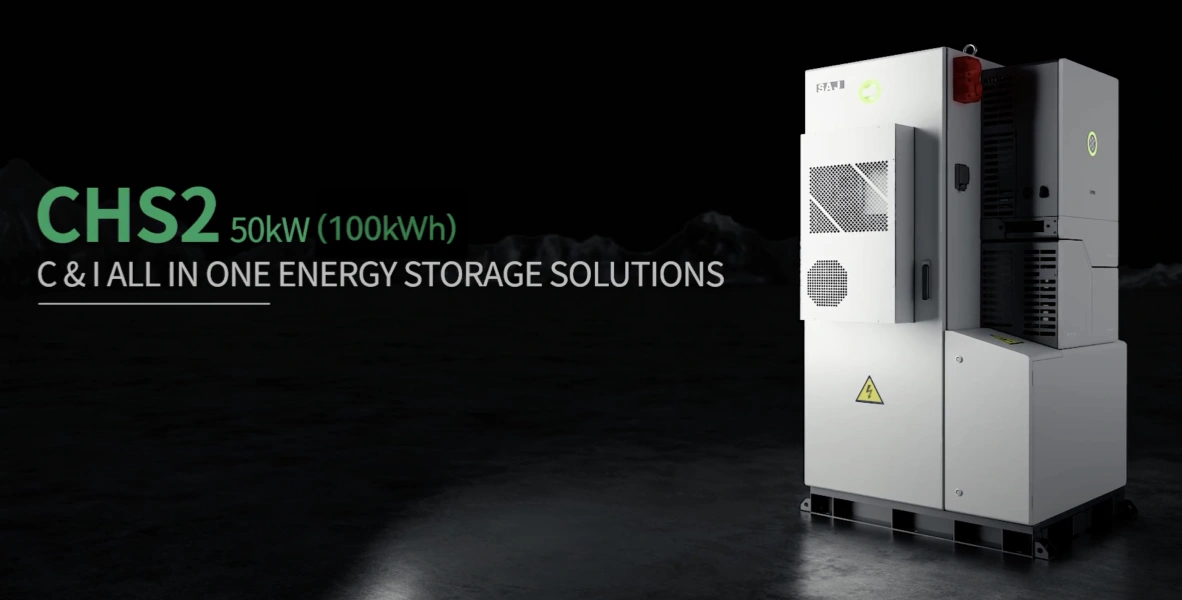

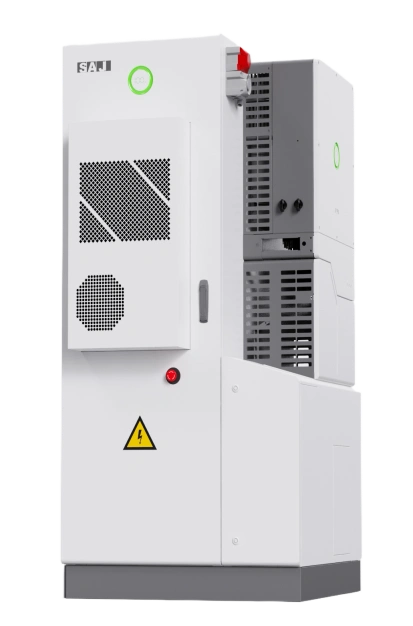

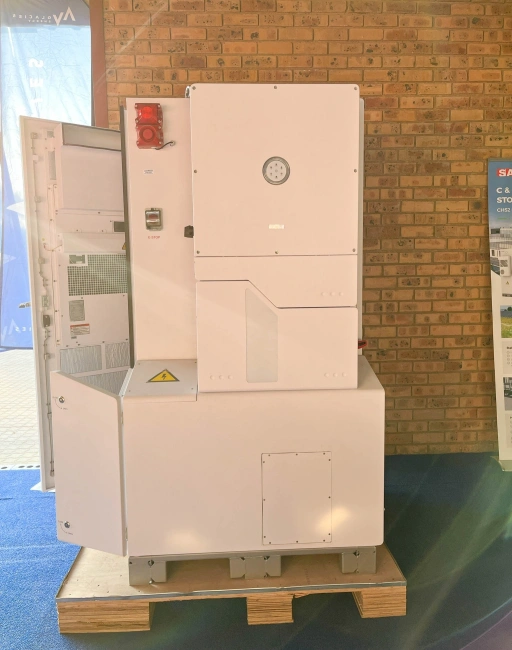

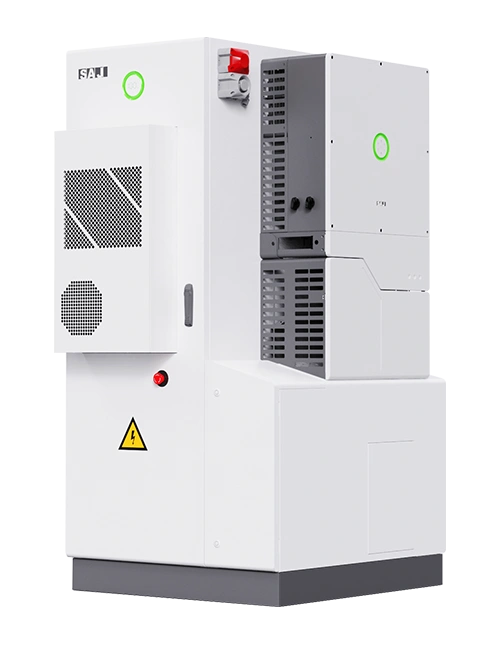

CHS2-30k~50k Sistema di accumulo energetico trifase all-in-one
Specifiche tecniche
| Alimentazione CA | 29.9kW - 50kW |
|---|---|
| Tipo di inverter | All-in-one hybrid energy storage system |
| Intervallo di tensione MPP | 180 – 850 Volt |
| MPP Tracker | 4 – 6 (model-dependent) |
| Fasi | 3 |
| Comunicazione | Wi-Fi, Ethernet, RS485 |
| Pezzi per confezione | 1 per carton, 1 per pallet |
| Garanzia | 10 years |
Related Articles
Explore more content related to this product
Applicazioni Scenari
Scopri come questo prodotto può essere utilizzato in diversi scenari reali

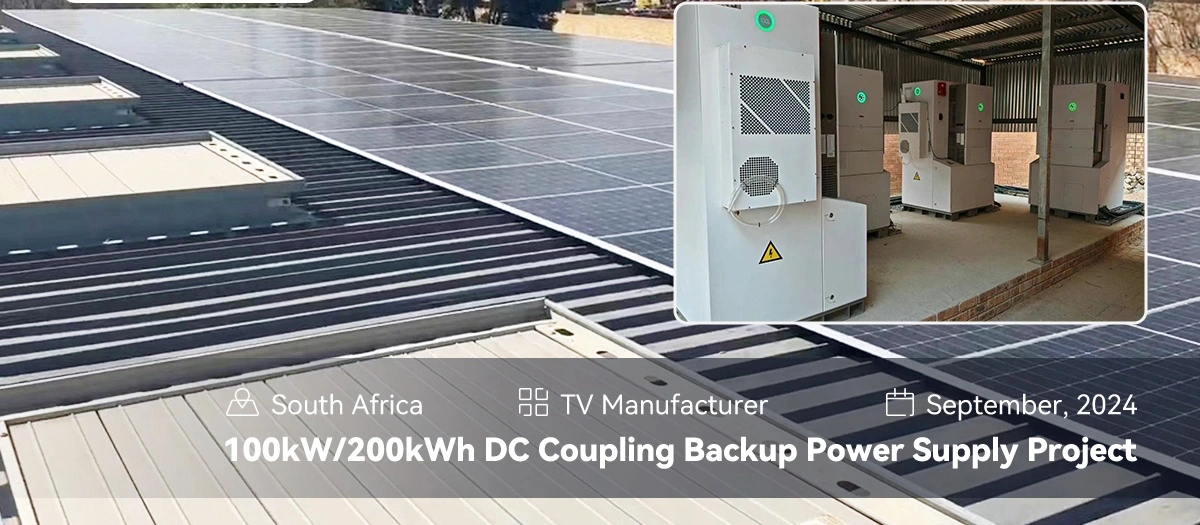

The mid-sized facilities
Who it’s for: Small to medium-sized manufacturing plants, workshops, or agricultural facilities with heavy daytime machinery loads and a need for stable, high-quality power.
Typical loads & priorities (example):
| Load | Power (kW) | Energy Source Priority |
|---|---|---|
| CNC Machines / Welders | 20–40 | 1. Solar / 2. Grid |
| Lighting & HVAC | 5–15 | 1. Solar / 2. Battery / 3. Grid |
| Control Systems & Servers | 1–3 | UPS Backup (Solar/Battery) |
| Diesel Generator (DG) | Up to 50 | Backup for extended outages |
How it runs (Peak Shaving & Backup Mode):
Working Hours: PV → Power all loads; surplus → Charge Battery Evening Peak: Battery → Power essential loads (security, servers) Grid Outage: Battery → Instantly power backup circuits; DG can support/recharge
Sizing guide (for reference):
- A 50 kW / 100 kWh CHS2 system paired with a 100 kWp PV array can cover a significant portion of a factory’s daytime energy needs, saving thousands on electricity bills.
- The 100 kWh battery can provide over 3 hours of full 30 kW backup power, ensuring a safe shutdown or continued operation of critical processes.
“Our electricity bill was our biggest overhead. The CHS2 now covers most of our daytime power, and the backup function has already saved a production batch during a grid fault.”

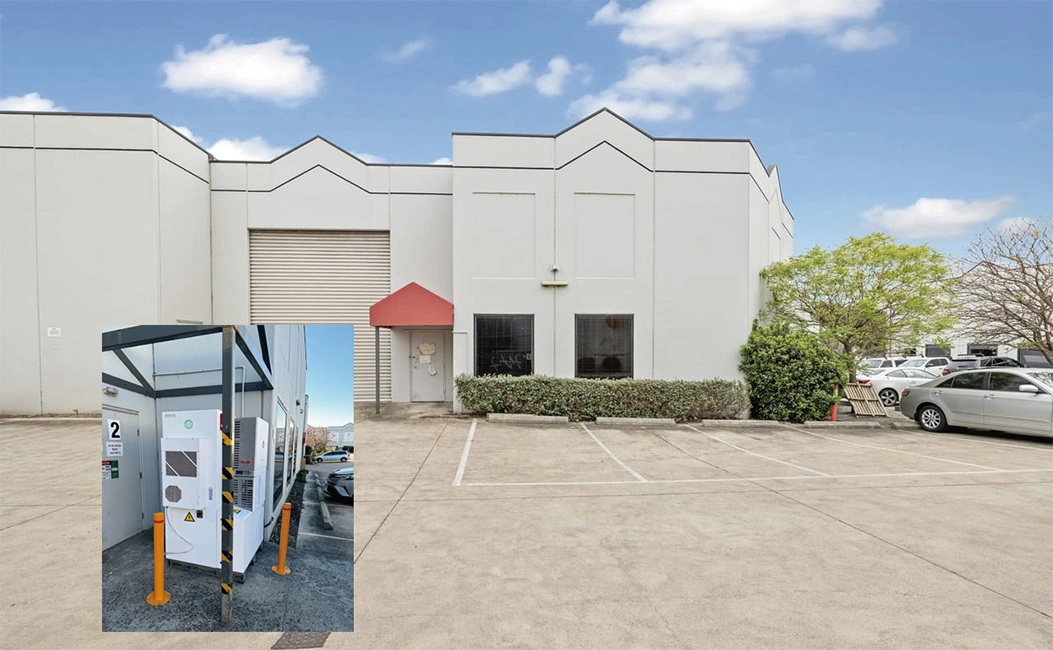

Commercial Building & Office Park
Who it’s for: Multi-tenant office buildings, retail centers, or private schools that want to reduce common area energy costs, offer EV charging as an amenity, and provide tenants with reliable power.
Typical loads & priorities (example):
| Load | Power (kW) | Energy Source Priority |
|---|---|---|
| Central HVAC System | 15–30 | 1. Solar / 2. Grid |
| Office Lighting & Power | 10–20 | 1. Solar / 2. Battery / 3. Grid |
| Elevators & IT Infrastructure | 5–10 | UPS Backup (Solar/Battery) |
| EV Charging Stations | 22+ | Managed by EMS (Solar/Grid) |
How it runs (Time-of-Use & VPP Mode):
Daytime: PV → Power building loads; surplus → Charge Battery Evening: Battery → Power common areas/security; participate in VPP events Grid Outage: Battery → Instantly power backup circuits (IT, emergency lights)
Revenue guide (for reference):
- A 50 kW / 100 kWh system can significantly reduce a building’s demand charges by shaving peaks.
- By participating in Virtual Power Plant (VPP) programs, the stored energy can be sold back to the grid during high-demand events, creating a new revenue stream.
“The CHS2 was a smart investment. It lowered our operating costs and the VPP income is a welcome bonus. Our tenants appreciate the reliable power and green credentials.”

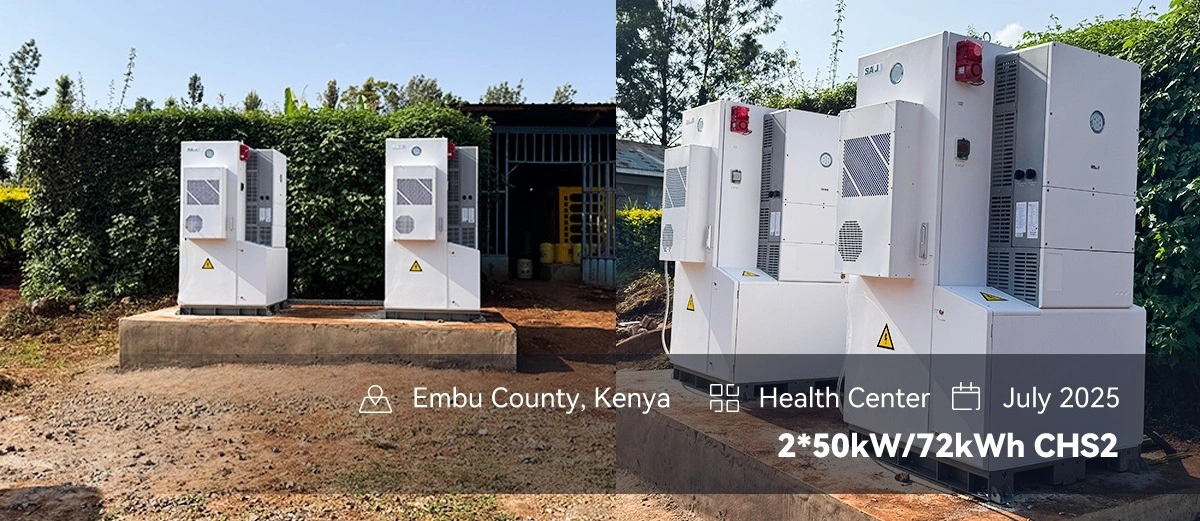

Remote Community & Off-Grid Resilience
Who it’s for: Remote communities, eco-resorts, or critical infrastructure sites with an unreliable grid connection or a complete off-grid requirement.
System components & roles (example):
| Componente | Role |
|---|---|
| PV Array (e.g., 80 kWp) | Primary energy source; powers loads and charges battery |
| CHS2 Battery (e.g., 100 kWh) | Stores daytime energy for night use and cloudy days |
| Diesel Generator (e.g., 50 kW) | Backup source; recharges battery when solar is insufficient |
| Community Loads | Powered 24/7 by the microgrid |
How it runs (Off-Grid Mode):
Sunny Day: PV → Power loads; surplus → Charge Battery Night/Cloudy: Battery → Power loads Low Battery: CHS2 automatically starts DG → Power loads & recharge Battery Full Battery: CHS2 automatically stops DG to save fuel
Resilience guide (for reference):
- A 100 kWh battery can sustain a 10 kW average load for nearly 9 hours without any solar or DG input.
- The intelligent DG control can reduce generator runtime by over 80% compared to a traditional DG-only system, massively cutting fuel costs and emissions.
“We finally have reliable, 24-hour power. The CHS2 runs silently on solar and battery most of the time, and the generator only kicks in when absolutely needed. It’s a game-changer for us.”
Come collaboriamo con voi
Dalla prima telefonata alla consegna finale, rendiamo il processo semplice e trasparente
Discutere e pianificare
Ascoltiamo le tue esigenze e elaboriamo un piano su misura per te. Il nostro team ti aiuterà a comprendere tutte le opzioni a tua disposizione.
Cita e accetta
Ti verrà comunicato un prezzo chiaro, senza costi nascosti. Una volta che sarai soddisfatto di tutto, firmeremo il contratto e inizieremo a lavorare.

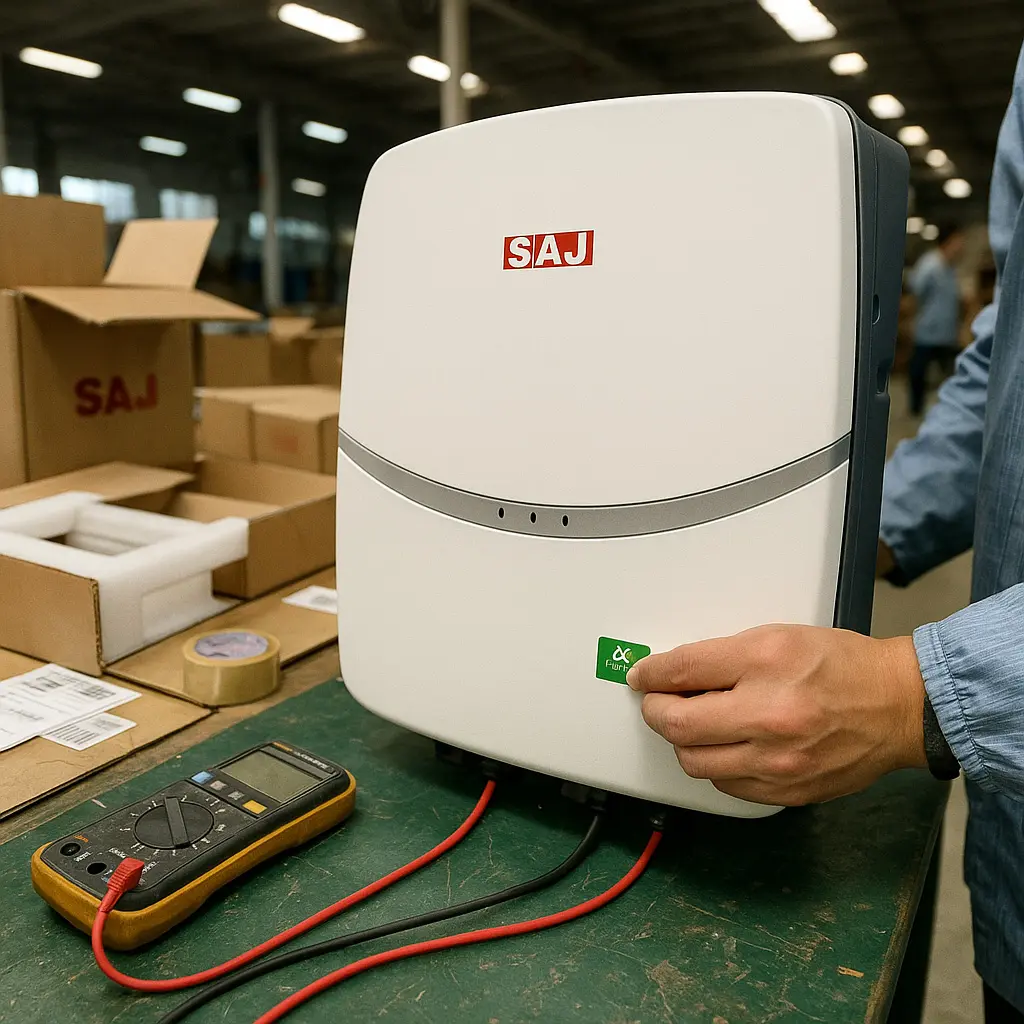

Prepara e controlla
