HS2-3k~6k Sistema di accumulo energetico monofase all-in-one

HS2-3k~6k Sistema di accumulo energetico monofase all-in-one
HS2-3k~6k Sistema di accumulo energetico monofase all-in-one

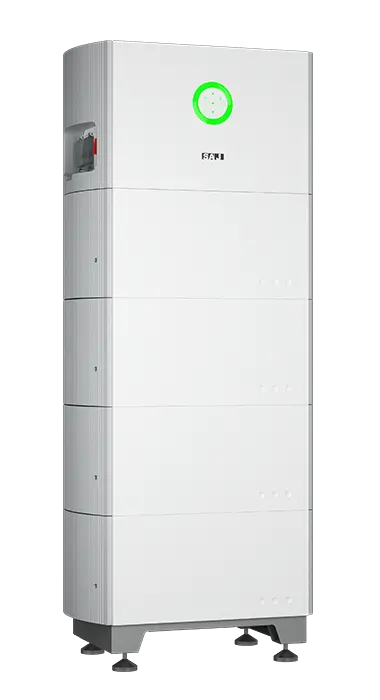

hs2-3k-6k-single-phase-hybrid-all-in-one-solution-product-overview-front

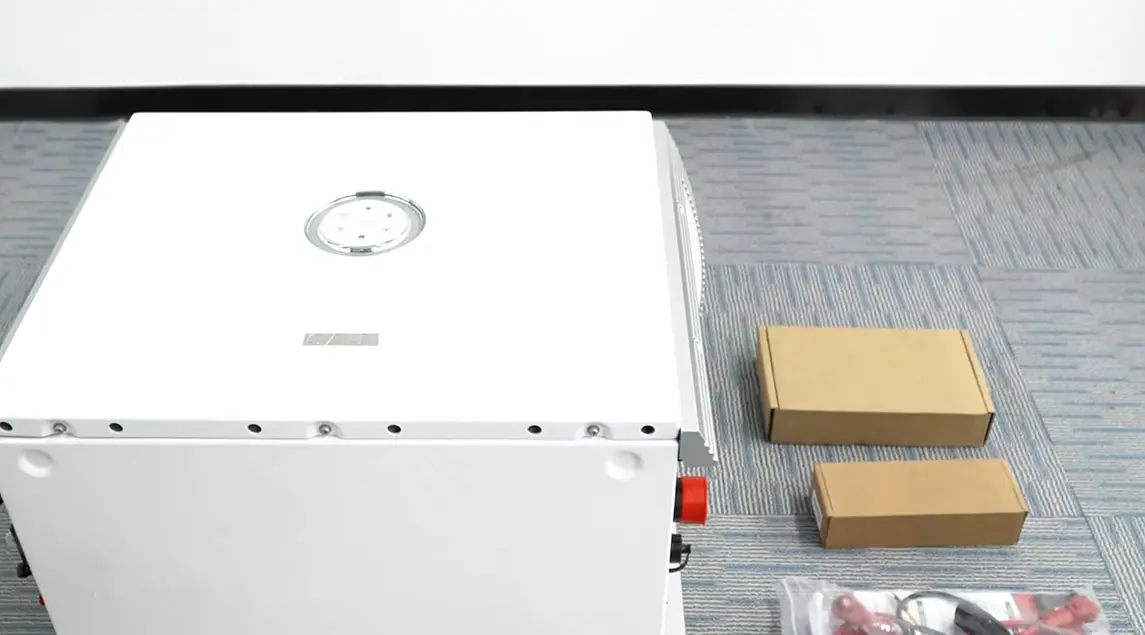

HS2-3k-6k-hybrid-all-in-one-energy-storage-solution-unbox

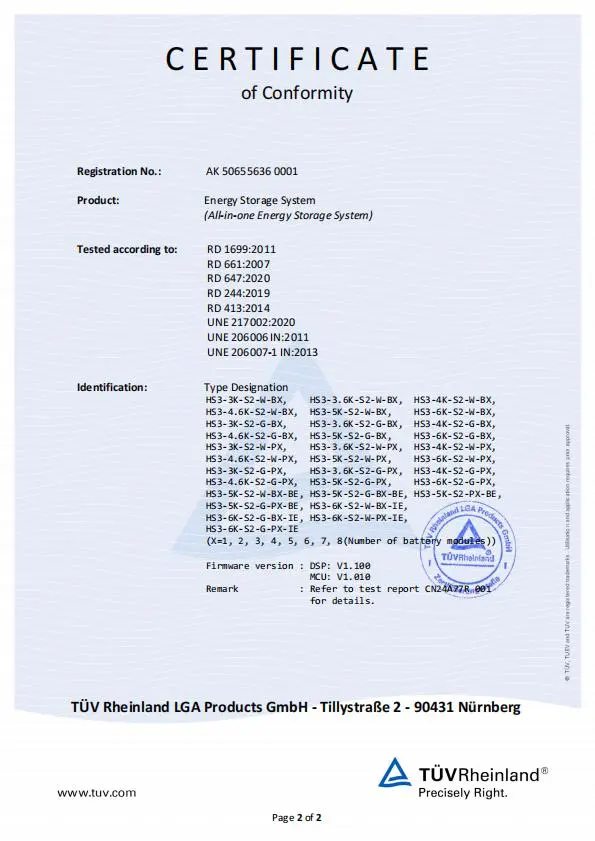

HS3-(3-6K)-S2 Series Single-phase RD and UNE Certificate-ES
Home » Prodotti » HS2-3k~6k Sistema di accumulo energetico monofase all-in-one

Specifiche tecniche

Alimentazione CA 3 kW - 6 kW
Tipo di inverter All-in-one hybrid energy storage system
Intervallo di tensione MPP 90 – 500 volt
MPP Tracker 2
Fasi 1
Comunicazione CAN, RS485, Wi-Fi, Ethernet, 4G, DRM, Bluetooth
Pezzi per confezione 1 per carton, 8 per pallet
Garanzia 10 years
Richiedi informazioni su questo prodotto Visualizza tutti i prodotti

Descrizione del prodotto

SAJ HS2 3 – 6 kW All-in-One ESS (S2)

SAJ’s all-in-one residential energy storage system integrates a hybrid inverter, BMS and modular battery into a single IP65 outdoor unit.
With 16 A string current, <10 ms UPS backup and up to 20 kWh of storage, it offers a simple, quiet and powerful solution for maximising home energy independence.

Design
Inverter Size (H×W×D) 354 × 626 × 365 mm
Battery Size (per 5 kWh) 261 × 626 × 365 mm
Weight (Inverter / Battery) 25 kg / 52.5 kg
Raffreddamento Natural convection < 35 dB
Allegato Alluminio, IP 65
Specifiche relative al sistema fotovoltaico e al sistema CA
Potenza nominale in corrente alternata 3 / 3,6 / 4 / 4,6 / 5 / 6 kW
Potenza fotovoltaica massima 4.5 – 9 kW DC
MPPTs / Strings 2 × 1 (90–500 V, 16 A ea.)
Uscita della griglia L+N+PE, 220/230/240 V
Alimentazione di emergenza UPS 3 – 6 kVA, < 10 ms transfer
Massima efficienza 97.6 %
THD (grid) < 3 %
Specifiche della batteria
Chemistry LiFePO4 (HV 85–450 V)
Capacity 5 – 20 kWh (1 to 4 modules)
Charge / Discharge 30 A max (all models)
Round-trip η Up to 96.6 %
Funzioni intelligenti
  • Self-Use, Time-of-Use & Backup modes
  • Zero-export & dynamic limit via smart meter
  • AC retrofit for existing solar systems
  • Optional AFCI & Rapid Shutdown (RSD)
  • Bluetooth LCD + eSAJ Home app; Wi-Fi / Ethernet / 4G cloud & OTA updates
Safety & Compliance
  • DC switch, Type II SPDs, RCMU, GFCI, DCI & insulation monitoring
  • Active anti-islanding, AC short-circuit & overload protection
  • Protezioni contro l'inversione di polarità e la sovratensione della batteria
  • Meets IEC 62109, EN 50549, AS 4777.2, VDE-AR-N 4105, CEI 0-21
Installazione e assistenza
  • Modular design for ground or wall mount
  • Internal wiring for clean, fast installation
  • Commission in minutes via eSAJ Home app
  • Global SAJ service network
Garanzia
Copertura standard 10 years
Risorse sui prodotti

Scarica il manuale d'uso e la scheda tecnica aggiornati:

Galleria video dei prodotti

Guarda le nostre dimostrazioni dei prodotti e i nostri tutorial

HS2 ALL-IN-ONE Residential Energy Storage Solution Installation Guide (Single-Phase)

SAJ H2 & HS2 series Initialization Setting - Sept. 2024

Explore why HS2 series so far is the most popular SAJ ALL-IN-ONE residential energy storage system

HS2 Webinar in English

SAJ Electricity Meter setting(H2/B2/HS2/R6/C6,etc)

SAJ Spotlight @GENERA: Smart Residential Energy Storage Solutions

Galleria video dei prodotti

Applicazioni Scenari

Scopri come questo prodotto può essere utilizzato in diversi scenari reali

Home Studio: Quiet, Clean Power for Recording & Streaming

Who it’s for: Creators who need steady, silent power for DAWs, audio interfaces, microphones, LED lights, and streaming gear—without pops, reboots, or fan noise.

Why HS2 fits: All-in-one stack keeps wiring short and tidy; seamless backup prevents audio dropouts during grid blips; quiet operation suits indoor studios.

Suggested backup map:

Device Typical power Backup? Note
Audio interface + preamps 10–35 W Yes Avoid USB reconnect mid-take
Studio PC / laptop 120–300 W Yes Protects DAW session from crash
Nearfield monitors (pair) 40–120 W Yes (mixing) Mute during transfer test to avoid thumps
LED key/fill lights 20–80 W Opzionale Low surge, stable color temp
HVAC / heater / kettle kW-class No Keep off backup to avoid inrush

Noise & grounding checklist:

  • Place the ESS stack outside the live room (utility corner/closet).
  • Run a single backup power strip for only studio gear to minimize ground loops.
  • Separate audio and lighting cables; cross at 90° if they must meet.
  • Do a 2-minute outage test; watch for pops, clicks, or USB reconnects.

Simple daily schedule (recording day):

09:00–17:30  PV → Studio + charge battery
17:30–22:00  Battery → PC, interface, monitors, LEDs
Always       Reserve SOC 25–30% for late sessions

Quick sizing hint (example only): A 10 kWh usable pack can support ~300–350 W of studio essentials for ≈24–28 hours total runtime (spread across sessions).

“A power blink used to ruin takes; now the meters don’t even twitch.” — Producer, home studio

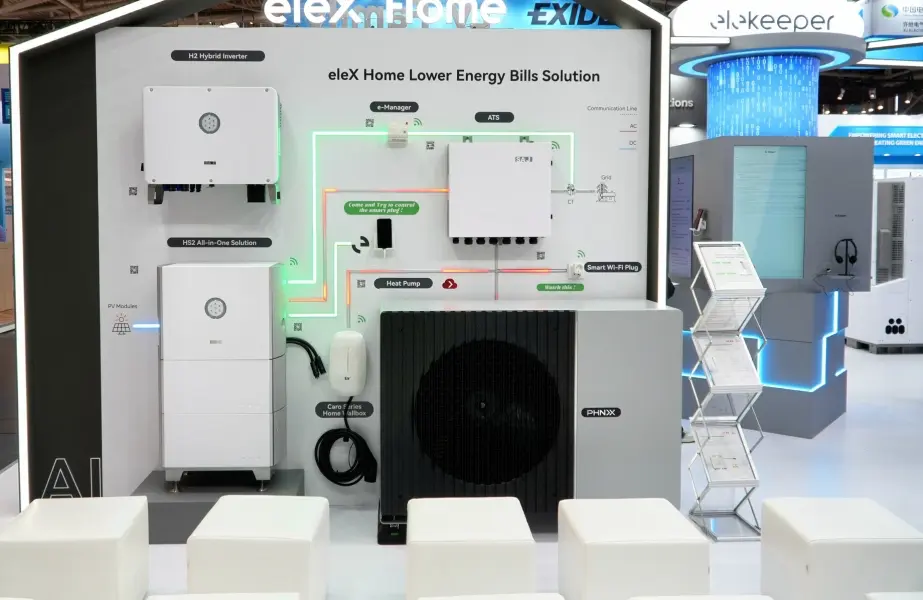

HS2-3k-6k-all-in-one-energy-storage-solution-Home Studio
Urban Home Office: Quiet Backup for Work & Study

Who it’s for: Apartments or townhouses that need silent, space-saving backup for laptops, Wi-Fi, lighting and a fridge during short grid issues.

Why HS2 fits: All-in-one stack (inverter + BMS + batteries) → fewer conduits; compact footprint for utility nooks; low audible noise for indoor walls.

Suggested backup pack (example):

Load Power Run time target
LED lighting (3–5 rooms) 150–250 W 4–6 h
Wi-Fi router + CCTV 30–60 W 24 h
Laptop / small PC 60–120 W 6–10 h
Fridge (inverter type) 90–150 W avg 24 h (duty)

3 quick steps:

  1. Move essential sockets to the BACK-UP sub-circuit; label clearly.
  2. Set a reserve SOC (e.g., 25–30%) to keep evening buffer.
  3. Run a 2-minute outage test; confirm no flicker or device reboot.
Simple daily plan:
Daytime:      PV → Loads; surplus → Battery
Evening peak: Battery → Lights/IT (18:00–22:00)
Night buffer: Reserve SOC 25–30%

“Power dipped mid-call — laptop and Wi-Fi stayed up. Zero interruptions.”

HS2-3k-6k-s2-all-in-one-energy-storage-solution-application-Urban Home Office

Come collaboriamo con voi

Dalla prima telefonata alla consegna finale, rendiamo il processo semplice e trasparente

Riunione di consultazione

Discutere e pianificare

Ascoltiamo le tue esigenze e elaboriamo un piano su misura per te. Il nostro team ti aiuterà a comprendere tutte le opzioni a tua disposizione.

Preventivo e contratto

Cita e accetta

Ti verrà comunicato un prezzo chiaro, senza costi nascosti. Una volta che sarai soddisfatto di tutto, firmeremo il contratto e inizieremo a lavorare.

Produzione e controllo qualità

Prepara e controlla

Prepariamo con cura il tuo ordine e verifichiamo che tutto sia conforme ai nostri elevati standard. Sarai sempre informato su come procede la procedura.

Consegna e assistenza

Spedizione e assistenza

Il tuo ordine ti verrà spedito in modo sicuro e puntuale. Siamo sempre a tua disposizione per qualsiasi necessità dopo la consegna.

Sei pronto a dare il via al tuo progetto?
Richiedi subito un preventivo FOB valido 24 ore

Domande frequenti

Trova le risposte alle domande più frequenti sui nostri prodotti e servizi

What should I prepare on-site so installation is fast and clean?

Goal: a one-visit install with tidy wiring and zero callbacks. Do these before your electrician arrives.

Area What to get ready
Mounting location Flat wall or base stand; dry, ventilated utility space; clear cable path to DB and roof strings
Board planning Decide which circuits move to BACK-UP (lights/IT/fridge). Label backup vs non-backup in advance
Conduits & routing Pre-run AC, PV, and battery conduits with pull lines; leave 15–20% spare space for future add-ons
Network Wi-Fi SSID/password or Ethernet drop near the unit for app/portal access

Pre-flight (5 steps):

  1. Mark drill holes with the template; verify vertical clearance for future battery additions.
  2. Stage connectors by circuit (PV / BAT / GRID / BACK-UP) to avoid cross-wiring.
  3. Print a one-page list of loads going to BACK-UP and tape it on the board.
  4. Prepare the router login; check signal at the install spot.
  5. Plan a 2-minute outage test for handover (evening or after business hours).

Common mistakes to avoid:

  • Putting high-inrush devices (OVEN/large compressor/EV charger) on BACK-UP.
  • Routing PV and data cables in the same metal conduit without separation.
  • No labels on backup sockets → users plug heavy tools there by accident.

“Site prepped like this cuts commissioning time by half.” — Installer note

What support does Sunriver Electric provide around HS2 projects (from quote to shipment)?

Focus: make procurement simple and predictable for installers and distributors — clear choices, clean docs, and transparent shipping info.

Stage What you get Why it helps
Model matching & quote FOB pricing and model suggestions aligned to your load profile and roof layout Speeds up decisions; avoids over/under-sizing
Documentation pack Latest datasheet, Quick Guide, User Manual, and test certificates (digital PDFs) Smooth utility filings and internal approvals
Pre-shipment checklist Packing list with SNs, carton specs & gross weight; outer-box label sample; loading photos on request Faster warehouse check-in; better traceability
After-shipping updates Vessel/flight info and B/L or tracking number; exception alerts if delays occur Transparent progress; easier site scheduling

On request:

  • Simple wiring overview (for team briefing before installation)
  • FAQ kit (backup branch planning, TOU examples, commissioning checklist)
  • Certificate language packs (e.g., English/Spanish/Thai)

How to speed up your quote (send these 6 bullets):

  1. Site type and peak loads (home/shop/clinic; evening vs daytime)
  2. Roof plan (two MPPT splits, rough panel count if known)
  3. Target backup circuits (lights/IT/fridge etc.)
  4. Desired battery capacity (usable kWh) or runtime goal
  5. Country/grid standard for compliance docs
  6. Target ship week and destination port
Tip: if you already purchased meters/CTs or comm sticks, include their models so we can confirm compatibility in one pass.

Contact: sales@sunriver-electric.com — reply with the six bullets above and we’ll return a clean, ready-to-use pack.

How do I design the backup circuit for everyday outages?

Goal: keep essentials alive (lights, Wi-Fi, IT, fridge) without tripping on motor inrush. Put only steady loads on BACK-UP.

Example backup plan (for a typical home/shop):

Load Approx. power Run time goal Note
LED lighting (3–5 rooms) 150–250 W 4–6 h Low surge
Router + CCTV 30–60 W 24 h Continuity matters
Laptop / POS / small PC 60–150 W 6–10 h Critical work
Fridge (inverter type) 90–150 W avg 24 h (duty) Food safety
Runtime sanity check (example only): A ~10 kWh usable pack can support ≈400 W essentials for ~20–22 h. If you need longer, reduce loads or add modules.
  1. Move essential circuits to BACK-UP terminals; label the sub-board.
  2. Set a reserve SOC (e.g., 25–30%) so evening outages still have cover.
  3. Do a 2-minute grid-off test; confirm no device reboots or flicker.
What’s the fastest commissioning path on day one?
  1. Mount the base + inverter enclosure; keep clearances for ventilation and cable glands.
  2. Wire AC GRID and BACK-UP to the board; land PV strings to the two MPPT inputs; connect the battery harness.
  3. Power up DC/AC → open the mobile app → bind device by SN via Bluetooth.
  4. Select country/grid profile; pick working mode (Self-Use / TOU / Backup) and set reserve SOC.
  5. Join Wi-Fi/Ethernet/4G for remote access; create the plant for the owner; check live power flow.

5-minute handover checklist:

  • Screenshots of final settings (grid profile, reserve SOC, schedules)
  • One grid-off test recorded in the app
  • Labels on BACK-UP vs non-backup circuits
How do I expand battery capacity later without headaches?

Plan for growth: start with what the client needs now (e.g., 10 kWh usable) and add modules as evening use grows.

Expansion workflow (summary):

  1. Schedule downtime; power down per manual; isolate AC and PV/DC.
  2. Add the new battery module(s) to the stack; follow the alignment & fastening steps.
  3. Reconnect harnesses; power up; in the app, confirm the new total capacity.
  4. Run a short charge/discharge to ensure modules report correctly.

Good practice: install modules from the same series and keep SOCs close (±5–10%) before coupling, to minimize balancing time.

What can I see in the app, and how does it help owners and O&M?
At a glance: live PV → Load → Battery → Grid flow, battery SOC, daily yield/consumption, and alerts.

Daily actions (simple):

  • Switch modes: Self-Use / Backup / Time-of-Use
  • Set reserve SOC (e.g., 25–30%) to protect evening hours
  • Adjust TOU windows when seasons change
  • Share viewer access with the homeowner or store manager
  • Apply firmware updates without a site visit

Reporting: download monthly energy and savings summaries; useful for utility audits and O&M reviews.

Hai ancora domande?

Non riesci a trovare la risposta che cerchi? Il nostro team di assistenza è a tua disposizione per aiutarti.

Contatta l'assistenza

Prodotti correlati

Scopri prodotti simili che potrebbero interessarti

HS3-3k~6k Sistema di accumulo energetico monofase all-in-one

HS3-3k~6k Sistema di accumulo energetico monofase all-in-one

Alimentazione CA: 3 kW - 6 kW
Tipo: All-in-one hybrid energy storage system
Gamma MPP: 90 – 550 volt
Fasi: 1
Visualizza i dettagli
HS3-3k~4k Sistema di accumulo energetico trifase all-in-one

HS3-3k~4k Sistema di accumulo energetico trifase all-in-one

Alimentazione CA: 3kW - 4kW
Tipo: All-in-one hybrid energy storage system
Gamma MPP: 180 – 900 volt
Fasi: 2
Visualizza i dettagli
CHS2-30k~50k Sistema di accumulo energetico trifase all-in-one

CHS2-30k~50k Sistema di accumulo energetico trifase all-in-one

Alimentazione CA: 29.9kW - 50kW
Tipo: All-in-one hybrid energy storage system
Gamma MPP: 180 – 850 Volt
Fasi: 3
Visualizza i dettagli
HS2-5k~10k Sistema di accumulo energetico trifase all-in-one

HS2-5k~10k Sistema di accumulo energetico trifase all-in-one

Alimentazione CA: 5 kW - 10 kW
Tipo: All-in-one hybrid energy storage system
Gamma MPP: 180 – 900 volt
Fasi: 3
Visualizza i dettagli
HS3-5k~12k Sistema di accumulo energetico trifase all-in-one

HS3-5k~12k Sistema di accumulo energetico trifase all-in-one

Alimentazione CA: 5 kW - 12 kW
Tipo: All-in-one hybrid energy storage system
Gamma MPP: 180 – 900 volt
Fasi: 3
Visualizza i dettagli

Sei pronto a parlare di questo prodotto?

Facci sapere di cosa hai bisogno: dai prezzi e dalla disponibilità alle specifiche tecniche o alla pianificazione del progetto. Il nostro team di prodotto ti risponderà entro 24 ore.

  • Richiedi preventivi personalizzati e tempi di consegna
  • Ottieni assistenza tecnica e verifiche di compatibilità
  • Ricevi la documentazione sui prodotti e i casi di studio
