HS2-5k~10k Sistema di accumulo energetico trifase all-in-one

HS2-5k~10k Sistema di accumulo energetico trifase all-in-one
HS2-5k~10k Sistema di accumulo energetico trifase all-in-one
HS2-5k-10k-T2-all-in-one-energy-storage-solution-product-overview-front
HS2-5k-10k-T2-product-showcase

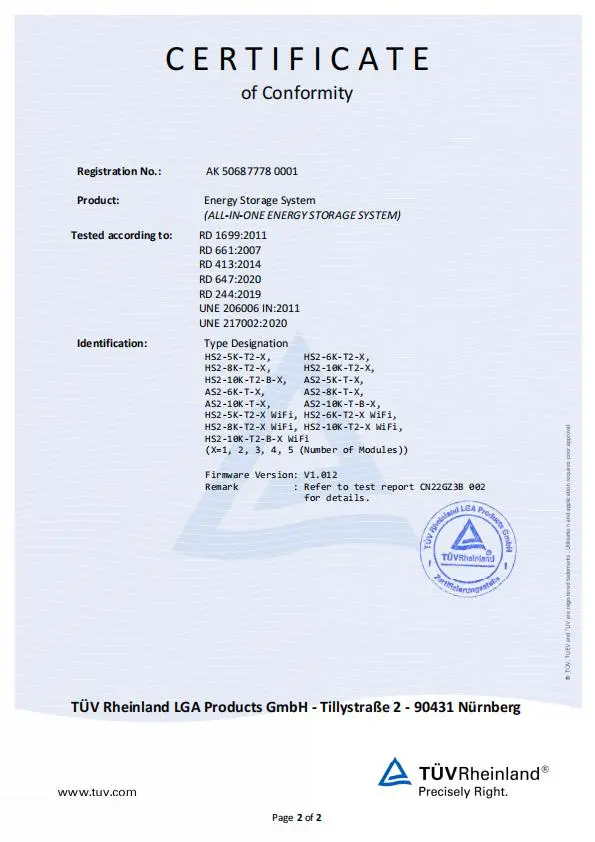

HS2,AS2-(3-12)K-T2 (WIFI ) RD Part Certificate-ES
Home » Prodotti » HS2-5k~10k Sistema di accumulo energetico trifase all-in-one

Specifiche tecniche

Alimentazione CA 5 kW - 10 kW
Tipo di inverter All-in-one hybrid energy storage system
Intervallo di tensione MPP 180 – 900 volt
MPP Tracker 2
Fasi 3
Comunicazione CAN, RS485, Wi-Fi, Ethernet, 4G, DRM, Bluetooth
Pezzi per confezione 1 per carton, 6 per pallet
Garanzia 10 years
Richiedi informazioni su questo prodotto Visualizza tutti i prodotti

Descrizione del prodotto

SAJ HS2 5 – 10 kW Three-Phase All-in-One ESS (T2)

SAJ’s all-in-one three-phase solution for residential energy storage. It integrates a hybrid inverter, BMS and modular battery into a single IP65 outdoor unit.
With 98 % peak efficiency, 16 A string current, <10 ms UPS backup and up to 25 kWh of storage, it offers a simple, quiet and powerful way to maximise home energy independence.

Design
Inverter Size (H×W×D) 450 × 626 × 365 mm
Battery Size (per 5 kWh) 261 × 626 × 365 mm
Weight (Inverter / Battery) 33 kg / 52.5 kg
Raffreddamento Natural convection < 35 dB
Allegato Alluminio, IP 65
Specifiche relative al sistema fotovoltaico e al sistema CA
Potenza nominale in corrente alternata 5 / 6 / 8 / 10 kW
Potenza fotovoltaica massima 7.5 – 15 kW DC
MPPTs / Strings 2 × 1 (180–900 V, 16 A ea.)
Uscita della griglia 3L+N+PE, 220/380 – 230/400 V
Alimentazione di emergenza UPS 5 – 10 kVA, < 10 ms transfer
Massima efficienza 98.0 %
THD (grid) < 3 %
Specifiche della batteria
Chemistry LiFePO4 (HV 180–600 V)
Capacity 10 – 25 kWh (2 to 5 modules)
Charge / Discharge 30 A max (all models)
Round-trip η Up to 97.6 %
Funzioni intelligenti
  • Self-Use, Time-of-Use & Backup modes
  • Zero-export & dynamic limit via smart meter
  • AC retrofit for existing solar systems
  • 100 % three-phase imbalance support
  • Optional AFCI & Rapid Shutdown (RSD)
  • Bluetooth LCD + eSAJ Home app; Wi-Fi / Ethernet / 4G cloud & OTA updates
Safety & Compliance
  • DC switch, Type II SPDs, RCMU, GFCI, DCI & insulation monitoring
  • Active anti-islanding, AC short-circuit & overload protection
  • Protezioni contro l'inversione di polarità e la sovratensione della batteria
  • Meets IEC 62109, EN 50549, AS 4777.2, VDE-AR-N 4105, CEI 0-21
Installazione e assistenza
  • Modular design for ground or wall mount
  • Internal wiring for clean, fast installation
  • Commission in minutes via eSAJ Home app
  • Global SAJ service network
Garanzia
Copertura standard 10 years
Risorse sui prodotti

Scarica il manuale d'uso e la scheda tecnica aggiornati:

Galleria video dei prodotti

Guarda le nostre dimostrazioni dei prodotti e i nostri tutorial

HS2 ALL-IN-ONE Residential Energy Storage Solution Installation Guide (Three Phase) - Sept. 2024

SAJ H2 & HS2 series Initialization Setting - Sept. 2024

SAJ HS2 Solaranlagen Installationsanleitung aus schrack tecknik

Explore why HS2 series so far is the most popular SAJ ALL-IN-ONE residential energy storage system

HS2 Webinar in English

Galleria video dei prodotti

Applicazioni Scenari

Scopri come questo prodotto può essere utilizzato in diversi scenari reali

Suburban House with Heat Pump & Laundry (TOU Savings + Backup)

Who it’s for: Detached homes that want lower evening bills and seamless backup for lights/IT while running a heat pump and daily laundry.

Componente Recommended Why
PV array 6–10 kW (2 MPPT, split E/W or S) Covers daytime base load + charges battery
Battery stack 10–16 kWh usable 2–4 h evening peak shaving + outage buffer
Backup branch LEDs, router/CCTV, work PC, fridge Seamless transfer (UPS-class) without reboots

Simple TOU schedule (example):

Charge (off-peak):  00:00–05:00
Daytime:            PV → Loads; surplus → Battery
Discharge (peak):   18:00–22:00
Reserve SOC:        25–30%

Installer checklist:

  • Put heat pump/washer on non-backup; keep backup for steady loads.
  • Label backup sockets clearly to avoid accidental heavy tools usage.
  • Run a 2-minute outage test at sunset to verify switchover and runtime.

“Evening bills dropped and lights never flicker during short cuts.”

HS2-5k-10k-all-in-one-energy-storage-solution-Suburban House
EV-Ready Home: Peak Shaving + Off-Peak Charging (Single-Phase)

Who it’s for: Homes that want to control evening bills while charging an EV at night. EV charger stays on non-backup; house essentials sit on backup.

House vs EV — simple split:

Circuit What’s on it Reason
BACK-UP LEDs, router/CCTV, work PC, fridge No flicker/reboot during grid blips
NON-BACKUP EV charger (10–16 A), oven, AC compressor Avoid high inrush on transfer

Daily schedule (example):

House battery:   Charge 00:00–05:00; Discharge 18:00–22:00; Reserve SOC 25–30%
EV charging:     Start 00:30 @ 10–16 A (off-peak); stop by 05:30
Notes:           Keep EV on non-backup; label sockets to avoid mix-ups
Sizing hint: If evening essential load ≈ 0.5–0.8 kW for 4 h, choose ~8–12 kWh usable. Add modules later if EV use increases household peaks.

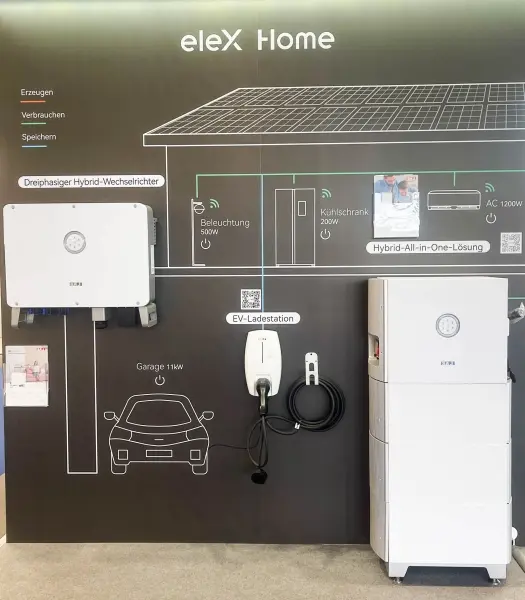

HS2-5k-10k-T2-all-in-one-energy-storage-solution-EV-Ready Home
Rural Café / Clinic (Unstable Grid): Quiet Backup Without a Genset

Who it’s for: Sites with frequent dips/short cuts that still need lights, Wi-Fi/EMR, and a small fridge to keep operating calmly.

Time Energy flow Note
Morning–Afternoon PV → Loads; surplus → Battery Quiet operation, indoor-friendly
Evening Battery → Lights/IT No genset noise/fumes
Grid outage UPS-class transfer POS/EMR stays online

Wiring quick path:

  1. Move LEDs, router/EMR PC, small fridge to BACK-UP.
  2. Keep coffee machines/ovens on non-backup (high inrush).
  3. Mark the board and run a 2-minute outage test for staff training.

Noise & placement: Locate the stack in a back room; low audible noise suits patient areas and small dining rooms.

“Two sags this week — lights and router never blinked; service stayed calm.”

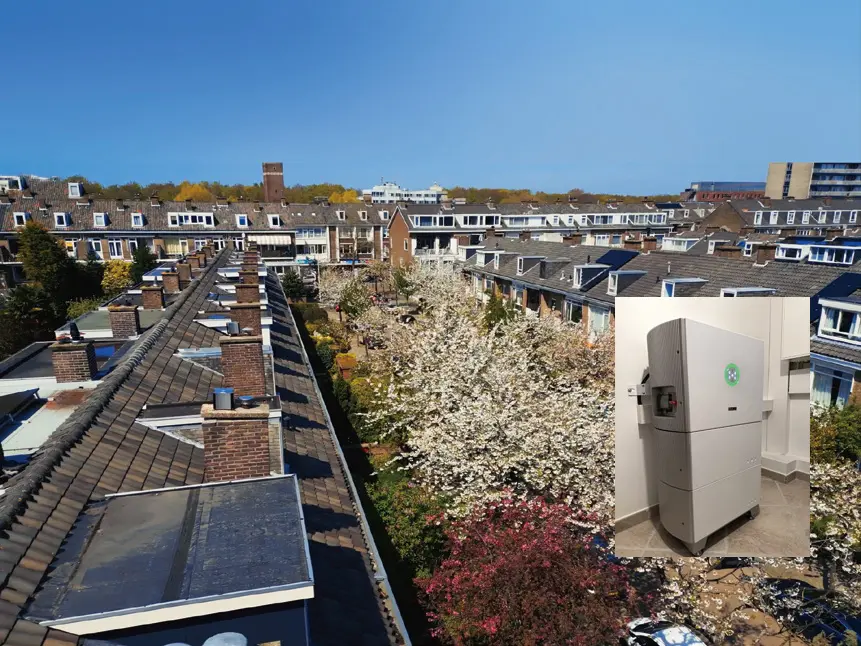

HS2-5k-10k-t2-all-in-one-energy-storage-solution-application

Come collaboriamo con voi

Dalla prima telefonata alla consegna finale, rendiamo il processo semplice e trasparente

Riunione di consultazione

Discutere e pianificare

Ascoltiamo le tue esigenze e elaboriamo un piano su misura per te. Il nostro team ti aiuterà a comprendere tutte le opzioni a tua disposizione.

Preventivo e contratto

Cita e accetta

Ti verrà comunicato un prezzo chiaro, senza costi nascosti. Una volta che sarai soddisfatto di tutto, firmeremo il contratto e inizieremo a lavorare.

Produzione e controllo qualità

Prepara e controlla

Prepariamo con cura il tuo ordine e verifichiamo che tutto sia conforme ai nostri elevati standard. Sarai sempre informato su come procede la procedura.

Consegna e assistenza

Spedizione e assistenza

Il tuo ordine ti verrà spedito in modo sicuro e puntuale. Siamo sempre a tua disposizione per qualsiasi necessità dopo la consegna.

Sei pronto a dare il via al tuo progetto?
Richiedi subito un preventivo FOB valido 24 ore

Domande frequenti

Trova le risposte alle domande più frequenti sui nostri prodotti e servizi

How should I plan the BACK-UP sub-board for HS2-5~10K sites?

Goal: keep essentials alive during short outages without nuisance trips or reboots.

Put on BACK-UP Typical load Why
IT & networking Wi-Fi/CCTV 30–60 W No reboot on switchover ≤10 ms
Lighting (LED) 150–250 W (3–5 rooms) Low inrush, safety/operations
Office/retail devices Laptop/POS 60–150 W Avoids data loss
Fridge (inverter type) 90–150 W avg Food safety

Backup power window (model examples):

  • HS2-5K: 5,000 VA (peak 10,000 VA for 60 s)
  • HS2-8K: 8,000 VA (peak 16,000 VA for 60 s)
  • HS2-10K: 10,000 VA (peak 16,500 VA for 60 s)

Output distortion on linear loads: <3% THDv.

  1. Move selected circuits to the dedicated BACK-UP terminals; label clearly.
  2. Keep high-inrush devices (EV charger, big oven, large compressors) on non-backup.
  3. Set a reserve SoC (e.g., 25–30%) and perform a 2-minute grid-off test before handover.

“POS and lights stayed up; customers didn’t notice the grid dip.”

What’s the quickest commissioning workflow with the app?

Target: first-time power flow on day one, with settings captured for records.

  1. Install comm module; power AC breaker; press Start to wake the system.
  2. Open the mobile app → Remote Configuration → Bluetooth → bind by inverter SN tail.
  3. Select country & grid code; confirm date/time and phase sequence.
  4. Pick a working mode: Per uso personale, Time-of-Use, or Back-up; set reserve SoC (e.g., 25–30%).
  5. Join Wi-Fi/Ethernet/4G; create the plant; check live PV → Load → Battery → Grid.

5-minute handover checklist:

  • Screenshot final grid profile, SoC reserve, and TOU windows
  • Run a grid-off test (no flicker/reboot on BACK-UP)
  • Share “viewer” access with the owner/store manager

Simple TOU template (example):

Charge (off-peak):  00:00–05:00
Daytime:            PV → Loads; surplus → Battery
Discharge (peak):   18:00–22:00
Reserve SoC:        25–30%
How do I expand from 10 kWh to 25 kWh later without headaches?

Capacity map (usable): 2→5 modules ≈ 9.0 / 13.5 / 18.0 / 22.5 kWh. Plan space and conduits for the final stack from day one.

Upgrade workflow:

  1. Schedule downtime; isolate AC & PV; power down per manual.
  2. Add battery module(s); secure with locking brackets; install side covers.
  3. Reconnect COMM/power harness; power up; confirm new capacity in the app.
  4. Run a short charge/discharge to verify module reporting and balance.
  • Keep SoC of old/new modules within ±5–10% before coupling.
  • Maintain ventilation clearances (natural convection cooling).
  • Label stack height on the board to avoid future overloading of the wall/base.
What protection & compliance features are built in?
Caratteristica Cosa fa Perché è importante
RCMU (integrated) Residual current monitoring RCD optional only if local code requires
Surge protection Integrated DC & AC SPD Protects against transient events
Anti-islanding Grid-safety disconnection Utility compliance
AFCI / RSD (optional) Arc detection / rapid shut-down Extra DC-side safety
Environment & build: IP65, natural-convection cooling; operating −10~50 °C (derate >45 °C); altitude up to 4000 m (derate >3000 m); noise <30 dBA.

Standards snapshot: EN 62109-1/2, EN 50549, IEC 62116/61727, AS 4777.2, VDE-AR-N 4105, and more (see datasheet).

Grid quality: supports 100% three-phase voltage imbalance; Euro efficiency up to 97.6%.

What’s in the cartons, and how should I stage the install?

Typical contents (inverter + battery packages): plug-in GRID/BACK-UP connectors, PV connectors (HS2), smart meter + 3 CTs, COMM cables, mounting brackets, grounding cable, side covers, and printed/QR docs. Communication module may be included if ordered.

Staging checklist (saves time on site):

  • Mark wall/base positions with the provided template; confirm clearances for stack growth.
  • Pre-label BACK-UP vs non-backup circuits on the board.
  • Pre-run AC/PV/COMM conduits; prepare Wi-Fi SSID/password or Ethernet drop.
  • Lay out connectors by circuit (PV / BAT / GRID / BACK-UP) to avoid cross-wiring.
  • Plan a 2-minute outage test for handover.

Nota: Use one external AC breaker per inverter (typical 63 A recommendation for HS2-5~10K). Type A or B RCD only if required by local code.

Sunriver Electric: what do we provide around HS2-5~10K (before & after shipping)?

We focus on predictable procurement for installers and distributors — clean choices, complete docs, and transparent shipping.

Stage What you receive Why it helps
Model match & quote FOB pricing + model suggestions based on loads/roof split Faster decisions; avoids over/under-sizing
Documentation pack Latest datasheet, Quick Guide, User Manual, certificates (PDF) Smooth utility filings & internal approvals
Pre-shipment Packing list with SNs, carton specs & gross weight; label sample; loading photos on request Fast warehouse check-in; better traceability
After shipping Vessel/flight info + B/L or tracking; exception alerts if delays occur Transparent progress; easier site scheduling

On request:

  • Simple wiring overview for team briefing
  • FAQ kit (backup planning, TOU examples, commissioning checklist)
  • Certificate language packs (e.g., EN/ES/TH)

Speed up your quote — send 6 bullets: site type, roof split/rough panel count, backup circuits, target usable kWh or runtime, country/grid standard, target ship week + destination port.

Contact: export@sunriver-inverter.com

Hai ancora domande?

Non riesci a trovare la risposta che cerchi? Il nostro team di assistenza è a tua disposizione per aiutarti.

Contatta l'assistenza

Prodotti correlati

Scopri prodotti simili che potrebbero interessarti

CHS2-30k~50k Sistema di accumulo energetico trifase all-in-one

CHS2-30k~50k Sistema di accumulo energetico trifase all-in-one

Alimentazione CA: 29.9kW - 50kW
Tipo: All-in-one hybrid energy storage system
Gamma MPP: 180 – 850 Volt
Fasi: 3
Visualizza i dettagli
HS3-3k~6k Sistema di accumulo energetico monofase all-in-one

HS3-3k~6k Sistema di accumulo energetico monofase all-in-one

Alimentazione CA: 3 kW - 6 kW
Tipo: All-in-one hybrid energy storage system
Gamma MPP: 90 – 550 volt
Fasi: 1
Visualizza i dettagli
HS3-5k~12k Sistema di accumulo energetico trifase all-in-one

HS3-5k~12k Sistema di accumulo energetico trifase all-in-one

Alimentazione CA: 5 kW - 12 kW
Tipo: All-in-one hybrid energy storage system
Gamma MPP: 180 – 900 volt
Fasi: 3
Visualizza i dettagli
HS3-3k~4k Sistema di accumulo energetico trifase all-in-one

HS3-3k~4k Sistema di accumulo energetico trifase all-in-one

Alimentazione CA: 3kW - 4kW
Tipo: All-in-one hybrid energy storage system
Gamma MPP: 180 – 900 volt
Fasi: 2
Visualizza i dettagli
HS2-3k~6k Sistema di accumulo energetico monofase all-in-one

HS2-3k~6k Sistema di accumulo energetico monofase all-in-one

Alimentazione CA: 3 kW - 6 kW
Tipo: All-in-one hybrid energy storage system
Gamma MPP: 90 – 500 volt
Fasi: 1
Visualizza i dettagli

Sei pronto a parlare di questo prodotto?

Facci sapere di cosa hai bisogno: dai prezzi e dalla disponibilità alle specifiche tecniche o alla pianificazione del progetto. Il nostro team di prodotto ti risponderà entro 24 ore.

  • Richiedi preventivi personalizzati e tempi di consegna
  • Ottieni assistenza tecnica e verifiche di compatibilità
  • Ricevi la documentazione sui prodotti e i casi di studio
